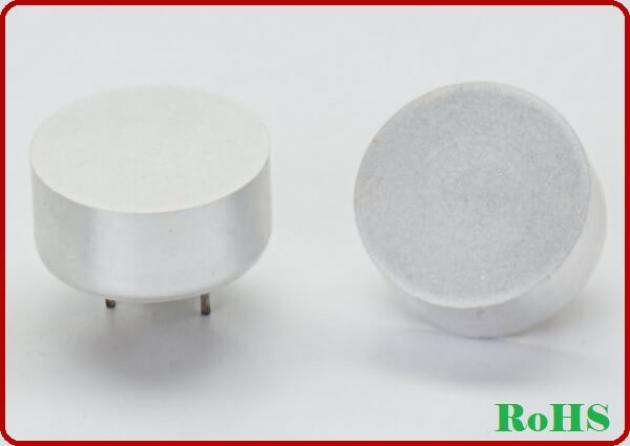

40CA-25E
Add to inquiry box
Production information
Features
- Robust housing
- Water Proof and Dust Proof
- High S.P.L. and High sensitivity
- High Power Efficiency
Applications
- Proximity sensor
- Flow meter
- Object Detectors
Specification
| 40CA-25E | Transceiver |
| Center Frequency | 40.0±1.0KHz |
| Transmitting Sound Pressure Level at 40.0KHz; 0dB re 0.0002µbar per 10Vrms at 30cm |
113dB min. |
| Receiving Sensitivity at 40.KHz 0dB=1 volt/µbar |
-72dB min. |
| Capacitance at 1KHz ± 20% | 3000 pF |
| Signal/Noise Ratio | 8 min. |
| Ring time | 1.1ms max. |
| Beam Angle（-6dB） | 30° |
| Housing/Color | Aluminium/silver |
| Max Driving Voltage | 30V |
| Operation Temperature | -30 to 80° C |
| Storage Temperature | -40 to 85° C |
Outline Dimension
A=25.0±0.5
B=12.0±0.5
D=9.0±0.5
E=10.0±1.0
F=1.0±1.0
（UNIT: mm）
B=12.0±0.5
D=9.0±0.5
E=10.0±1.0
F=1.0±1.0
（UNIT: mm）
