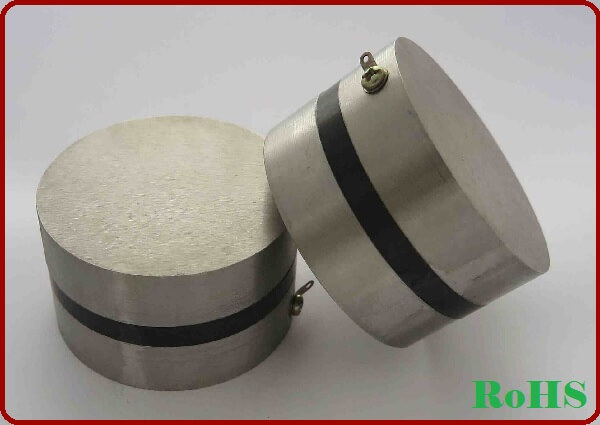

D60350B
Add to inquiry box
Production information
Features
- Low Power Consumption
- Low heat
- High Power Efficiency
- Stable Output
Applications
- Hydrophone
- depth Sounders
- Ultrasonic Fish Finder
Specification
| D60350B | transducer |
| Center Frequency | 50KHz±0.5KHz |
| Capacitance at 1KHz ± 20% | 6000 pF |
| Resonant Impedance | 25Ω max. |
| Head Material | stainless steel |
| Dimension Unit | mm |
| Operation Temperature | -30 to 40° C |
| Storage Temperature | -40 to 80° C |
Outline Dimension
A=60±1
B=35
B=35
