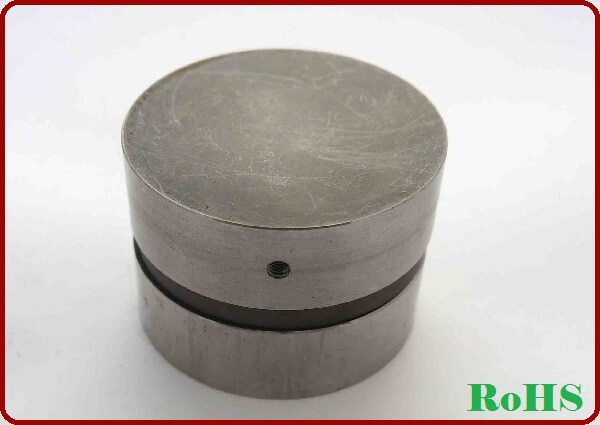

D50340S-50K
Add to inquiry box
Production information
Features
- Low Power Consumption
- Low heat
- High Power Efficiency
- Stable Output
Applications
- Ultrasonic Fish Finder
- Sub Bottom Profiling
- depth Sounders
Specification
| D50340S-50K | transducer |
| Center Frequency | 50KHz±1.0KHz |
| Capacitance at 1KHz ± 20% | 3700 pF |
| Resonant Impedance | 40Ω max. |
| Head Material | stainless steel |
| Dimension Unit | mm |
| Operation Temperature | -30 to 80° C |
| Storage Temperature | -40 to 80° C |
Outline Dimension
A=50±0.5
B=34
B=34
