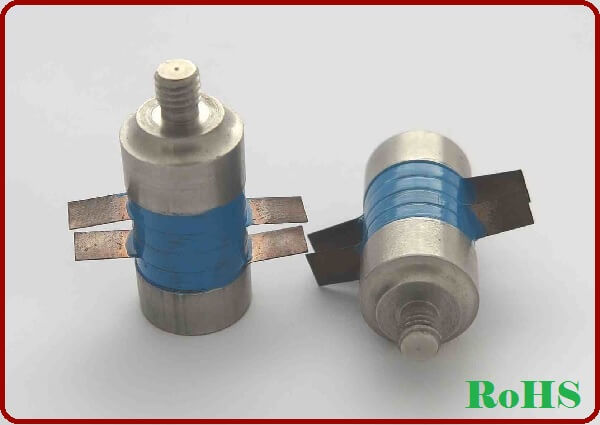

LB-1464C
Add to inquiry box
Production information
Features
- Stable Output
- Low Power Consumption
- High Power Efficiency
Applications
- Ultrasonic Wire Machine
- Ultrasonic Wire Bonding
Specification
| LB-1464C | transducer |
| Center Frequency | 64KHz±4.0KHz |
| Capacitance at 1KHz ± 15% | 2400 pF |
| Resonant Impedance | 20Ω max. |
| Maximum Allowable Power(W) | 15 |
| Dimension Unit | mm |
| Operation Temperature | -20 to 50° C |
| Storage Temperature | -40 to 80° C |
Outline Dimension
A=M5*P0.8
B=13.5
C=33.5±2
B=13.5
C=33.5±2
