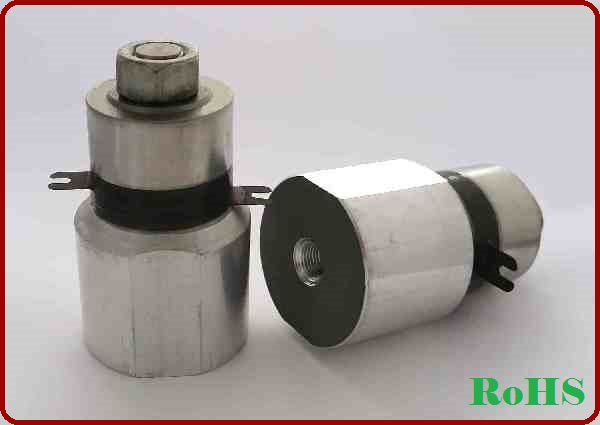

LB-4528
Add to inquiry box
Production information
Features
- Low heat
- Large Amplitude
- High Power Efficiency
Applications
- Ultrasonic Jewelry Cleaner Machine
- Ultrasonic Cleaner Apparatus
Specification
| LB-4528 | transducer |
| Center Frequency | 28KHz±0.5KHz |
| Capacitance at 1KHz ± 20% | 3600 pF |
| Resonant Impedance | 35Ω max. |
| Maximum Allowable Power(W) | 60 |
| Dimension Unit | mm |
| Operation Temperature | -20 to 80° C |
| Storage Temperature | -40 to 80° C |
Outline Dimension
A=45
B=78.4
C=35
D=24
B=78.4
C=35
D=24
