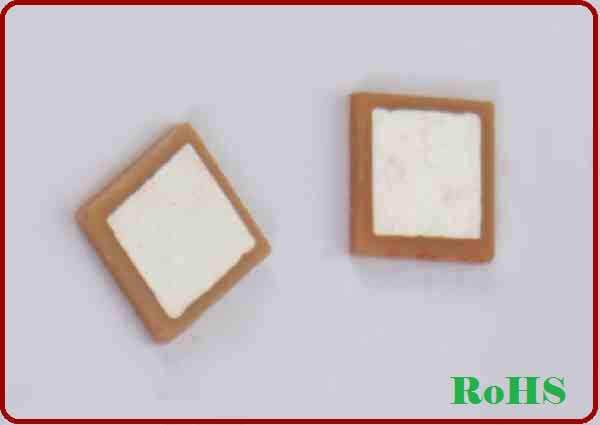

S0506
Add to inquiry box
Production information
Features
- Low heat
- High Power Efficiency
- Stable Output
Applications
- Ultrasonic Actuator
- Ultrasonic Sensor
- Vibration System
Specification
| S0506 | Piezoelectric disc |
| Center Frequency | 248KHz |
| Capacitance at 1KHz ± 15% | 1050 pF |
| Dielectric Loss | 2% max. |
| Coupling Factor Kp | 0.6 min. |
| Piezoelectric Constant, d33(pC/N) | 600 min. |
| Dimension Unit | mm |
| Dimension Tolerance | By customer is available |

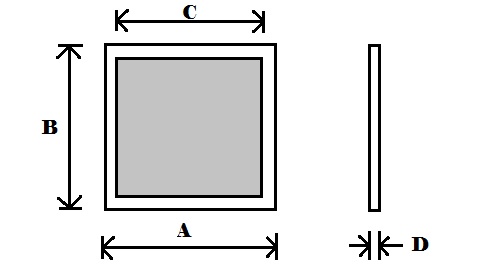

Outline Dimension
A=5.0±0.1
B=5.0±0.1
C=4
D=0.6±0.05
B=5.0±0.1
C=4
D=0.6±0.05
