H2012-1.4MS
Add to inquiry box
Production information
Features
- Low heat
- High Power Efficiency
- Stable Output
Applications
- Humidifier
- Ultrasonic Nebulizer
- Mist Producer
Specification
| H2012-1.4MS | Piezoelectric disc |
| Center Frequency | 1.4MHz±50KHz |
| Capacitance at 1KHz ± 10% | 1250 pF |
| Dielectric Loss | 0.5% max. |
| Resonant Impedence | 4 max. |
| Dimension Unit | mm |
| Dimension Tolerance | By customer is available |

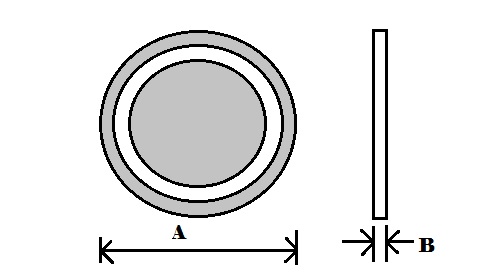

Outline Dimension
A=20±0.2
B=1.4
B=1.4
