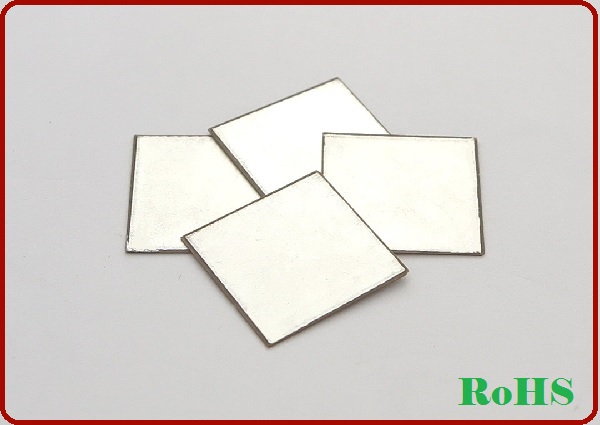

S18-1
Add to inquiry box
Production information
Features
- Low heat
- High Power Efficiency
- Stable Output
Applications
- Ultrasonic Actuator
- Ultrasonic Sensor
- Vibration System
Specification
| S18-1 | Piezoelectric plate |
| Center Frequency | 10000KHz±500KHz |
| Capacitance at 1KHz ± 15% | 13500 pF |
| Dielectric Loss | 0.4% max. |
| Coupling Factor Kp | 0.4 min. |
| Dimension Unit | mm |
| Dimension Tolerance | By customer is available |
Outline Dimension
A=17.7
B=17.7
C=0.22
B=17.7
C=0.22
