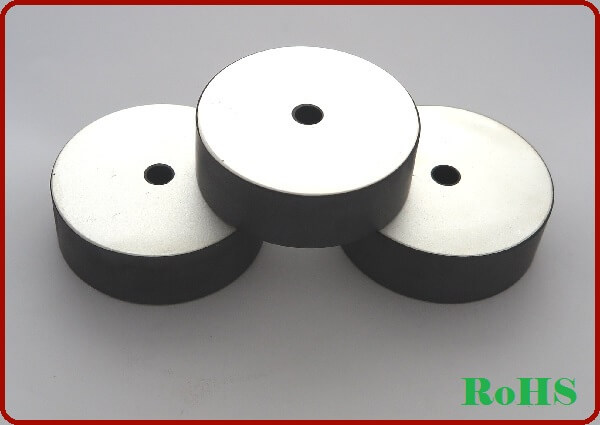

BT-R50170
Add to inquiry box
Production information
Features
- BaTiO3 material
- Lead free
- Stable Output
Applications
- Hydrophone
- Depth Sounder
Specification
| BT-R50170 | Piezoelectric Ring |
| Center Frequency | 180KHz±3% |
| Capacitance at 1KHz ± 15% | 1350 pF |
| Impedence Rt(Ω) | 100 max. |
| Piezoelectric Constant, d33(pC/N) | 136 min. |
| Dimension Unit | mm |
| Dimension Tolerance | By customer is available |

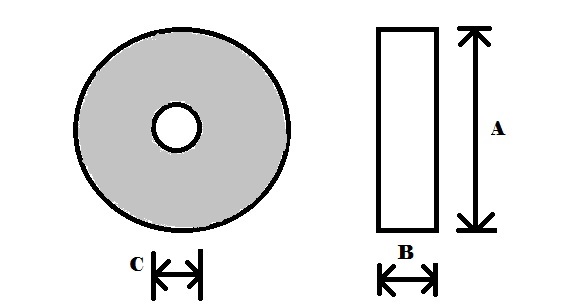

Outline Dimension
A=50
B=17
C=6
B=17
C=6
