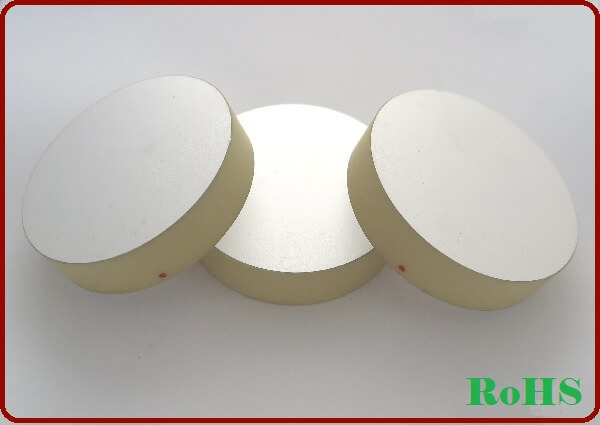

D60140
Add to inquiry box
Production information
Features
- Low Power Consumption
- Low heat
- High Power Efficiency
- Stable Output
Applications
- Ultrasonic Detector
- Actuator
Specification
| D60140 | Piezoelectric disc |
| Center Frequency | 33KHz±5% |
| Capacitance at 1KHz ± 15% | 4350 pF |
| Coupling Factor Kp | 0.61 min. |
| Piezoelectric Constant, d33(pC/N) | 500 min. |
| Dielectric Loss | 2% Max. |
| Dimension Unit | mm |
| Dimension Tolerance | By customer is available |
Outline Dimension
A=60.0±0.3
B=14.0±0.05
B=14.0±0.05
