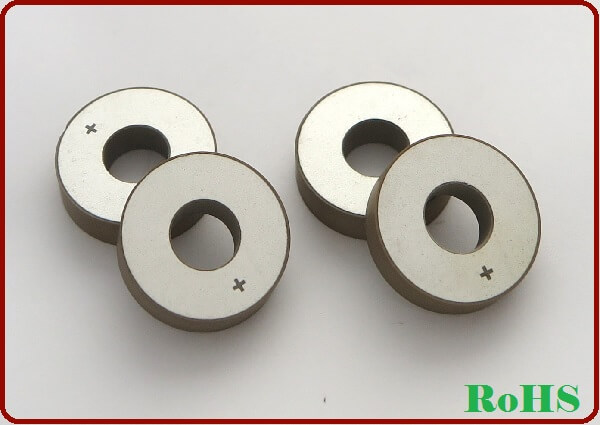

R2050
Add to inquiry box
Production information
Features
- Low heat
- High Power Efficiency
- Stable Output
Applications
- Ultrasonic Actuator
- Ultrasonic Sensor
- Ultrasound Transducer
Specification
| R2050 | Piezoelectric Ring |
| Center Frequency | 81.5KHz ± 1.5KHz |
| Capacitance at 1KHz | 520 pF ± 20% |
| Dielectric Loss | 0.4% max. |
| Resonant Impedence | 40 max. |
| Piezoelectric Constant, d33(pC/N) | 310 min. |
| Dimension Unit | mm |
| Dimension Tolerance | By customer is available |
Outline Dimension
A=20.0±0.1
B=5.0±0.05
C=8.0±0.2
B=5.0±0.05
C=8.0±0.2
