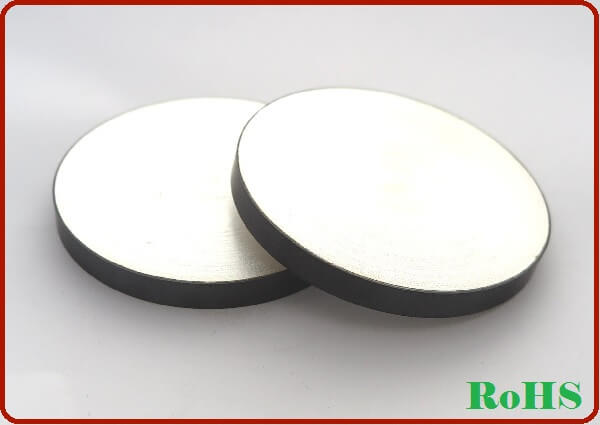

BT-D6060
Add to inquiry box
Production information
Features
- BaTiO3 Material
- Low heat
- High Power Efficiency
- Stable Output
Applications
- Ultrasonic Detector
- Actuator
Specification
| BT-D6060 | Piezoelectric disc |
| Center Frequency | 53.5KHz±3KHz |
| Capacitance at 1KHz | 5100 pF ± 15% |
| Coupling Factor Kp | 0.3 min. |
| Piezoelectric Constant, d33(pC/N) | 136 min. |
| Resonant Impedence | 10 max. |
| Dimension Unit | mm |
| Dimension Tolerance | By customer is available |
Outline Dimension
A=60.0±0.1
B=6.0±0.5
B=6.0±0.5
