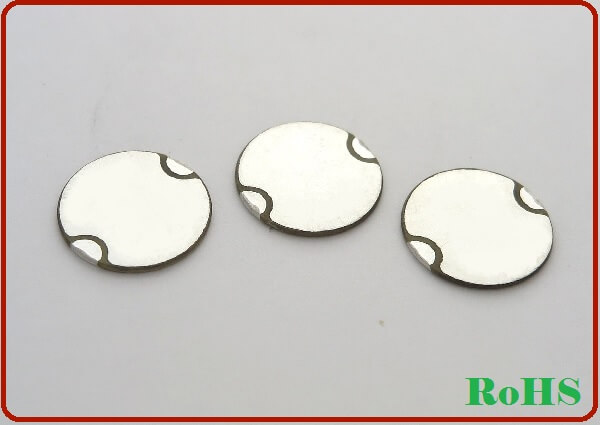

D20088
Add to inquiry box
Production information
Features
- Low Power Consumption
- Low heat
- High Power Efficiency
- Stable Output
Applications
- Ultrasonic Detector
- Ultrasonic Beauty Head
- Vibration System
Specification
| D20088 | Piezoelectric disc |
| Center Frequency | 2.5MHz ± 5% |
| Capacitance at 1KHz | 5400 pF ± 15% |
| Coupling Factor Kp | 0.56 min. |
| Dielectric Loss, (%) | 2 max. |
| Dimension Unit | mm |
| Dimension Tolerance | By customer is available |
Outline Dimension
A=20.0±0.1
B=0.88±0.02
C=3
B=0.88±0.02
C=3
