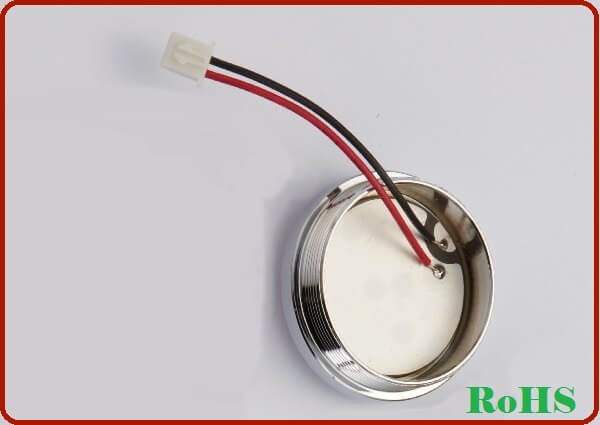

ctd3830-1MS
Add to inquiry box
Production information
Features
- Low Power Consumption
- Low heat
- High Power Efficiency
- Stable Output
Applications
- Ultrasonic Therapy Machine
- Ultrasonic Beauty Machine
- Ultralipo system
Specification
| ctd3830-1MS | transducer |
| Center Frequency | 1.0MHz±50KHz |
| Capacitance at 1KHz ± 20% | 3000 pF |
| Resonant Impedance | 5Ω max. |
| Head Material | 6061-T6 with coating Chrome |
| Wire Length with connector | 60~65mm |
| Dimension Unit | mm |
| Dimension Tolerance | ±0.2mm |
| Operation Temperature | -30 to 40° C |
| Storage Temperature | -40 to 80° C |

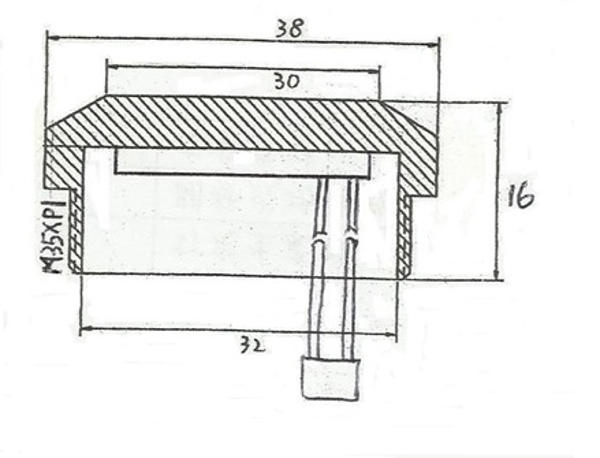

Outline Dimension
Download file
