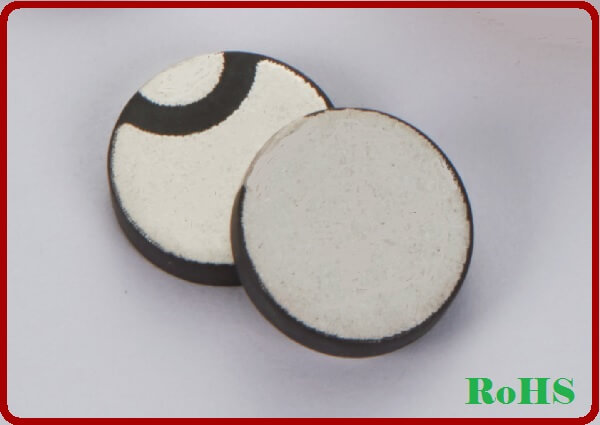

D1020S
Add to inquiry box
Production information
Features
- Low Power Consumption
- Low heat
- High Power Efficiency
- Stable Output
Applications
- Flow Meter
- Ultrasonic Beauty Head
- Vibration System
Specification
| D1020S | Piezoelectric disc |
| Center Frequency | 1.0MHz±5% |
| Capacitance at 1KHz ± 20% | 320 pF |
| Resonant Impedance | 2Ω max. |
| Coupling Factor Kp | 0.56 min. |
| Piezoelectric Constant, d33(pC/N) | 300 min. |
| Dimension Unit | mm |
| Dimension Tolerance | By customer is available |
Outline Dimension
A=10.0±0.3
B=2.05±0.05
C=3
B=2.05±0.05
C=3
